ZM4395120 Hose assembly for Volvo Excavator spare

Volvo ZL502C(SER NO 0503001 -) ZM4395120 Hose assembly wholesale Part Name: ZM4395120 Hose assembly KDSORT: 240, 8016, 180, 8048, 8077, 490, 250, 260, 780, 170, 460, 470, 190, 810 UE: U ANT1: 2, 1 ANT2: 2, 1 ANT3: 2 INFLYTT: 1 Hose Recipe Asmoverall Length MM: 370 Hose Recipe Asmoverall Length Inch: 14.57 Hose Recipe Asmoverall Length ToL MM: +/- 1% Hose Recipe Asmoverall Length ToL inch: +/- 1% H ...
  • PRODUCT DETAIL

Volvo ZL502C(SER NO 0503001 -) ZM4395120 Hose assembly wholesale

Part Name: ZM4395120 Hose assembly
KDSORT: 240, 8016, 180, 8048, 8077, 490, 250, 260, 780, 170, 460, 470, 190, 810
UE: U
ANT1: 2, 1
ANT2: 2, 1
ANT3: 2
INFLYTT: 1
Hose Recipe Asmoverall Length MM: 370
Hose Recipe Asmoverall Length Inch: 14.57
Hose Recipe Asmoverall Length ToL MM: +/- 1%
Hose Recipe Asmoverall Length ToL inch: +/- 1%
Hose Recipe Fitting OrIentationtol Tol Degrees: +/- 3 degrees
Hose Recipe Hydraulic Hose Standard: EN (474-1) (5.18.13 Hydraulic Hosees)
Hose Recipe Safety Standard: EN 982-1996
Hose Recipe Assembly Instruction Reference: 1076838
Hose Recipe Version: 1
Hose Recipe Status: A
Hose Recipe Vendor: MANULI
Hose Recipe Grade: 1
Hose Part Hose Description: Eternity/2
Hose Part Hose Size DN: 12
Hose Part Hose Size Inch: 1/2″
Hose Part Hose Dash: -08
Hose Part Hose Pressure Class MPA: 35.0
Hose Part Hose Pressure Class PSI: 5075
Hose Part Hose Pressure Class BAR: 350
Hose Part Hose Standard ISO: ISO 11237 2SC
Hose Part Hose Standard SAE: SAE 100R16
Hose Part Hose Standard EN: EN 857 2SC
Hose Part Hose Standard MSHA: MSHA 2G-IC-126C/8-1
Hose Part Hose Structure: Wire braided two layer
Hose Part Hose Remark: High service life and reliability
Hose Part Hose Outer Diameter MM: 21
Hose Part Hose Outer Diameter INCH: 0.83
Hose Part Cancelled: N
Hose Part Vendor: MANULI
Hose Part Grade: 1
Hose Part In Program: Y
Catalog: 20005/92514/100, 20040/925/280, 20039/925/400, 20040/926/150, 20039/926/50, 20577/916/450, 20042/925/100, 20040/916/600, 20040/925/50, 07511/912/300, 07508/911/400, 20579/92515/200, 20006/91691/100, 07516/92613/100
Looking for Part NO.ZM4395120(VOE11305486)?
We offer SAMSUNG / YANMAR / Hitachi / HYUNDAI / CUMMINS / Deutz spare parts. You can get this part with wholesale price start from 1 pcs. Contact us get the best price.
VOE11305486 replacement for new Part NO.ZM4395120

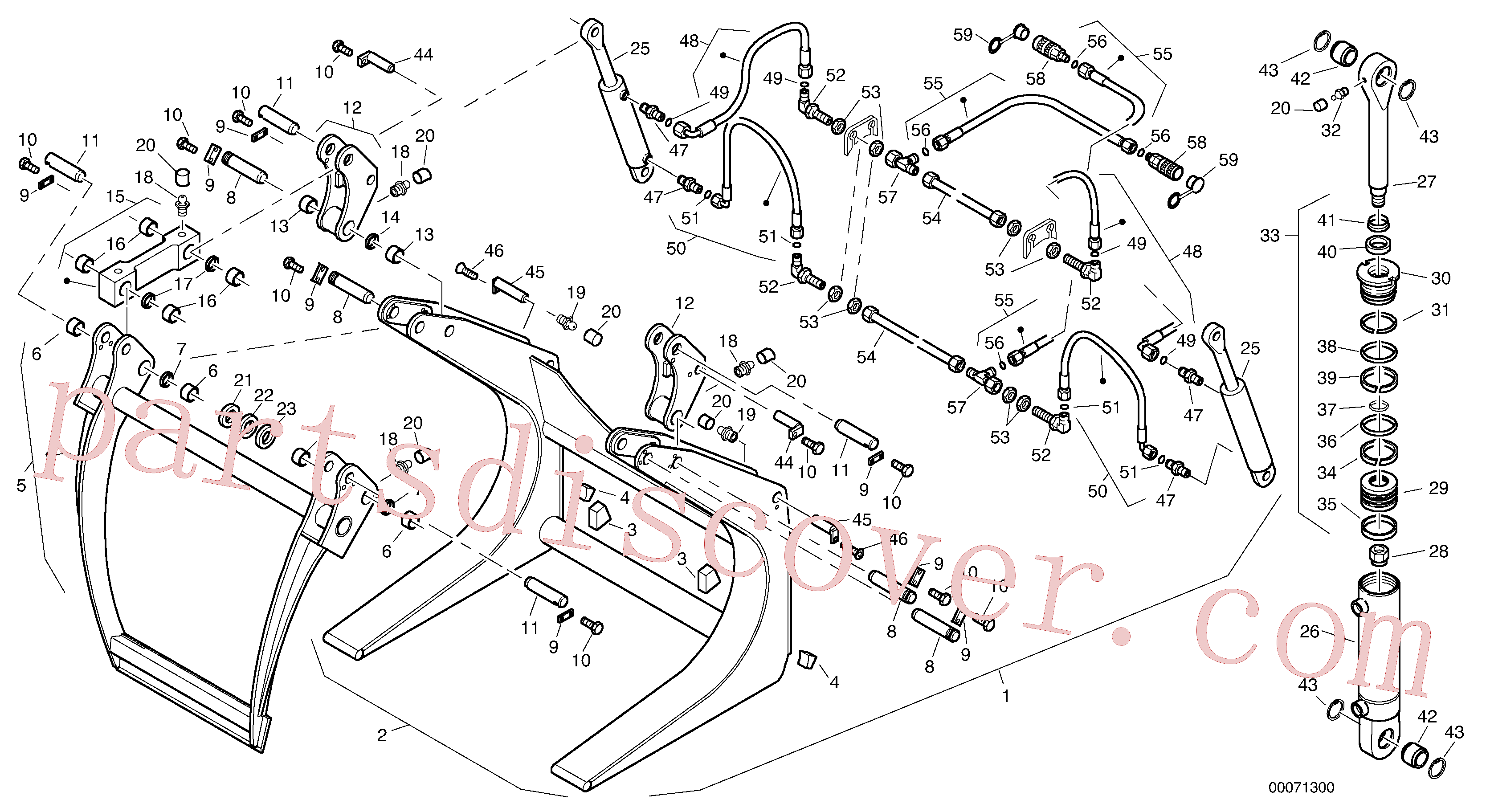

ZM4395120 for Volvo Tree clamp(00071300 assembly)
Volvo ZM4395120 Hose assembly suitable for 00071300 Tree clamp assembly.
Volvo ZM4395120(c.00071300) Hose assembly

Ref: 00071300 / 50 / 4

20003/92613/100, 20040/926/100, 07517/92613/100, 20039/926/50, 07518/92613/200, 07516/92613/100, 20040/926/150, 07518/92613/100

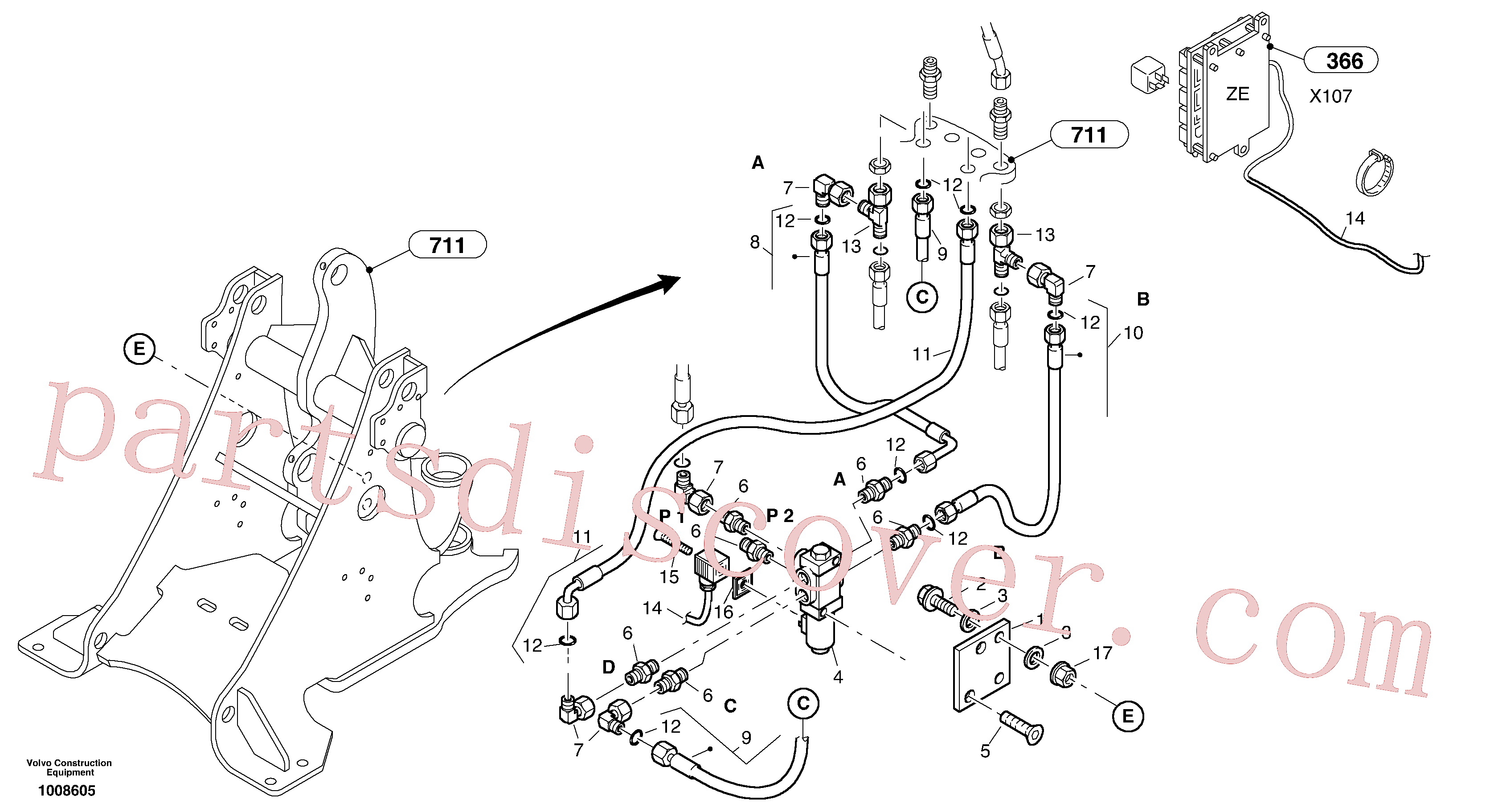

ZM4395120 for Volvo Hydraulic function - Nr. 3(1008605 assembly)
Volvo ZM4395120 Eternity/2 suitable for 1008605 Hydraulic function – Nr. 3 assembly.
Volvo ZM4395120(c.1008605) Hose assembly

Ref: 1008605 / 8 / 1

20038/916/200, 20037/916/200

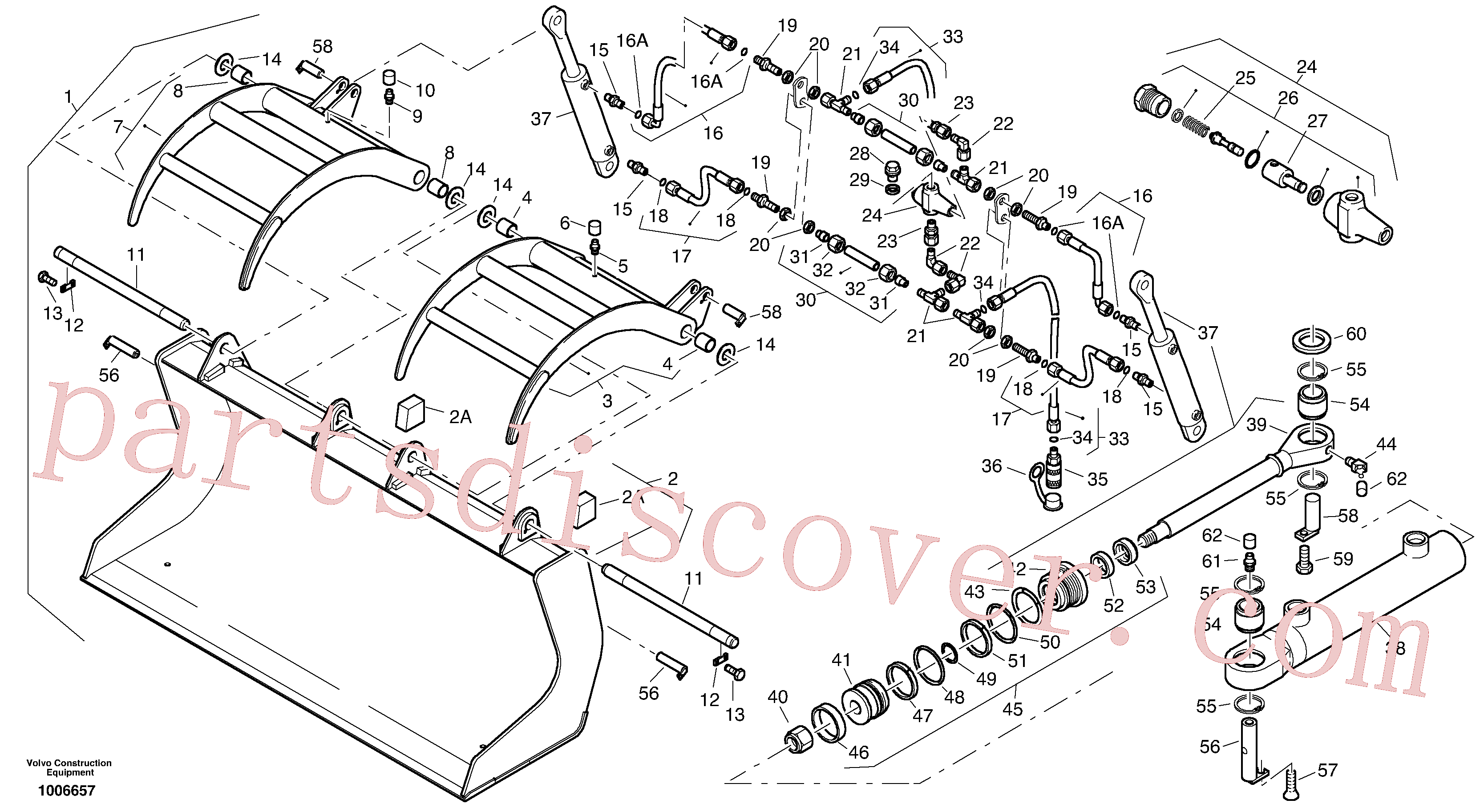

ZM4395120 for Volvo Scrap bucket(1006657 assembly)
Volvo ZM4395120 Eternity/2 suitable for 1006657 Scrap bucket assembly.
Volvo ZM4395120(c.1006657) Hose assembly

Ref: 1006657 / 16 / 2

07508/925/300

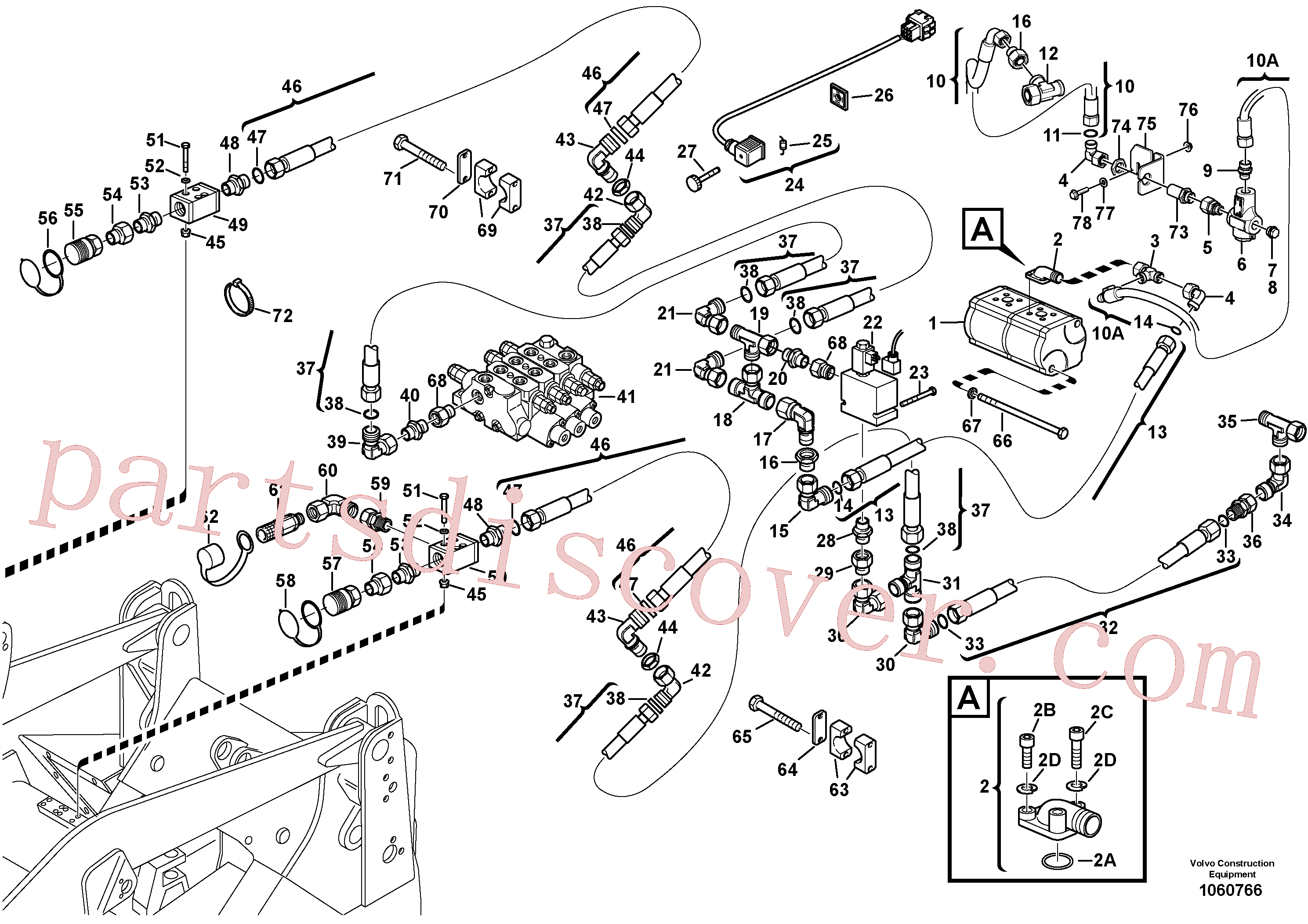

ZM4395120 for Volvo Auxil. pomp with lines(1060766 assembly)
Volvo ZM4395120 Hose assembly suitable for 1060766 Auxil. pomp with lines assembly.
Volvo ZM4395120(c.1060766) Eternity/2

Ref: 1060766 / 10A / 1

VOE2878831 / U / 30L/MIN Hydraulic pump

20040/916/600

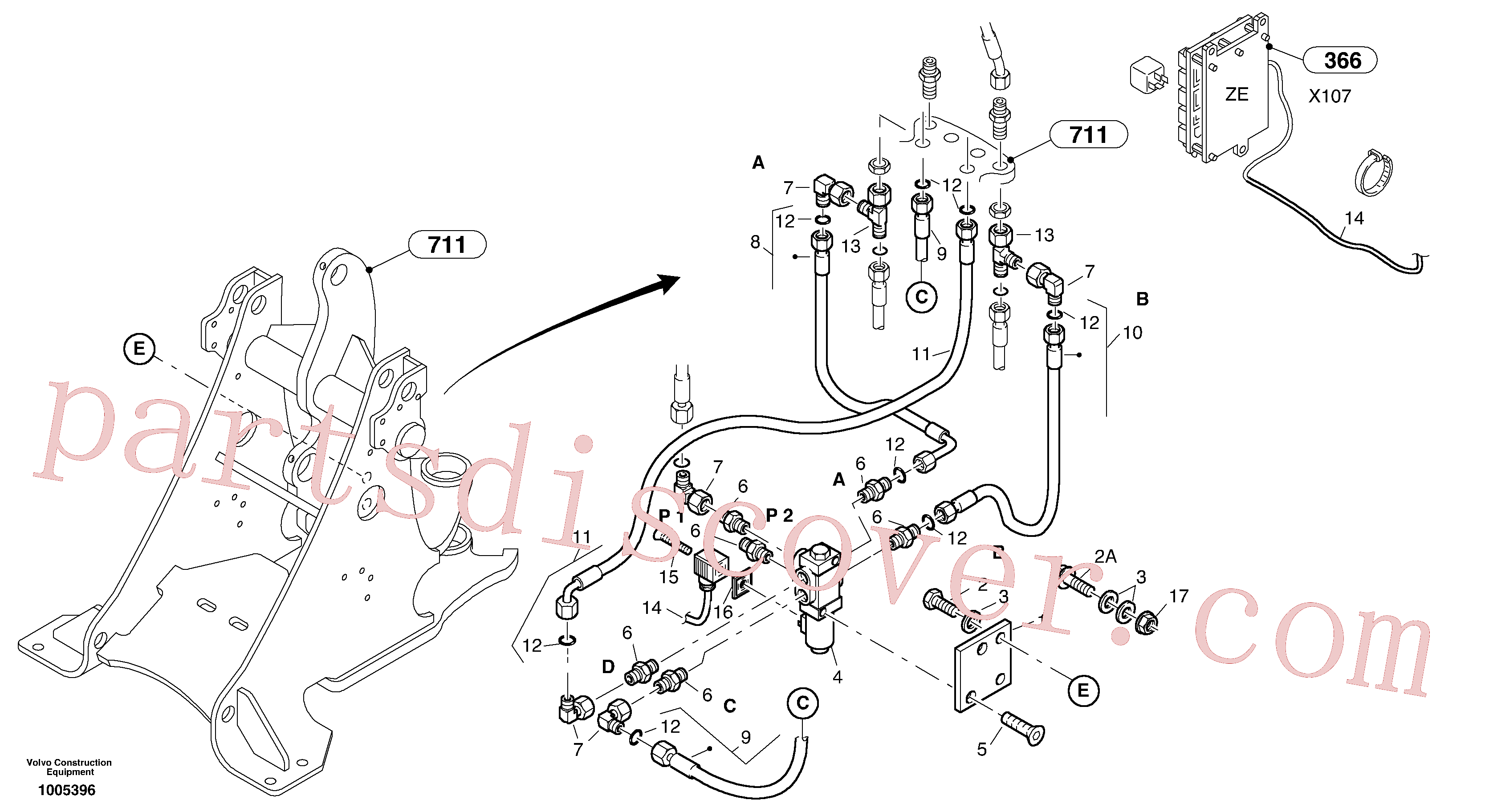

ZM4395120 for Volvo Hydraulic function - Nr. 3(1005396 assembly)
Volvo ZM4395120 Hose assembly suitable for 1005396 Hydraulic function – Nr. 3 assembly.
Volvo ZM4395120(c.1005396) Hose assembly

Ref: 1005396 / 8 / 1

20006/91691/100, 20005/91691/100
We supply Doosan / SAMSUNG / CUMMINS / SUMITOMO / ISUZU / YANMAR spare parts. MOQ 1 pcs is available! VOLVO Part NO.ZM4395120(VOE11305486) is on sale now!
Part NO. ZM4395120 for Volvo L40(TYPE 191, 192 SER NO – 1000)
WHEEL LOADER VOLVO L40
BASIC MACHINE
2892236, SER NO. 1910001-
2892233, SER NO. 1920001-
CAB
2812296 Laminated safety glass
2812295 Single layer safety glass toughened glass
2812174 Canopy
ENGINE
2810933, Basic machine Ser.no 1910001-
2810932, Basic machine Ser.no 1920001-
FRONT AXLE
2808627, Basic machine ser.no 1910001-
2808614, Basic machien ser.no 1920001-
REAR AXLE
2808628, Basic machine ser.no 1910001-
2808626, Basic machine ser.no 1920001-
TRANSMISSION
2906471, Basic machine Ser.no 1910001-
2906473, Basic machine Ser.no 1920001-
Part NO. ZM4395120 for Volvo L20F
WHEEL LOADER VOLVO L20F
BASIC MACHINE
11390018, L20F, S/N 1705001 –
CAB
11391354, Cab L20 – L25F
ENGINE
15211725 Volvo D3,6D CAE3, S/N 1705001-1705145
15216360 Volvo D3,6D CAE3, S/N 1705146-1706300
15223704 Volvo D3,1A CBE3, S/N 1706301-
17258759 Volvo D3,1A CBE3, S/N 1706301-
FRONT AXLE
15200436, ZF – AP-R715, S/N 1705001-1705298
15219729, S/N 1705299-
REAR AXLE
15200437, ZF – AP-R715, S/N 1705001-1705298
15219730, S/N 1705299-
Part NO. ZM4395120 for Volvo L45B(TYPE 194, 195 SER NO – 1499)
WHEEL LOADER VOLVO L45B
BASIC MACHINE
2892240, SER. NO. 1941001 – 1941499
2892235, SER. NO. 1951001 – 1951499
CAB
2812296 Laminated safety glass
2812295 Single layer safety glass toughened glass
2812174 Canopy
ENGINE
2814014, Basic machine Ser.no. 1941001 – 1941499
2814015, Basic machine Ser.no. 1951001 – 1951499
FRONT AXLE
2813984, Basic machine Ser.no. 1941001 – 1941499
2813983, Basic machine Ser.no. 1951001 – 1951499
REAR AXLE
2813986, Basic machine Ser.no. 1941001 – 1941499
2808622, Basic machine Ser.no. 1951001 – 1951499
TRANSMISSION
2906472, Basic machine Ser.no. 1941001 – 1941499
2906474, Basic machine Ser.no. 1951001 – 1951499
Part NO. ZM4395120 for Volvo ZL502C(SER NO 0503001 -)
WHEEL LOADER VOLVO ZL502C
BASIC MACHINE
2891906, SER NO. 0503001-
CAB
2805409, Single layer safety glass toughened glass
ENGINE
2814027
FRONT AXLE
2801830, Basic machine ser.no. 0503001-
REAR AXLE
2803687, Basic machine ser.no. 0503001-
Part NO. ZM4395120 for Volvo CWL ATTACHMENTS(ATTACHMENTS, COMPACT WHEEL LOADERS, GEN. G,H)
Attachments for Volvo wheel loaders, G/H- series
This catalogue lists the spare parts for attachments for
construction equipment, bearing the name Volvo
with the following designations:
WHEEL LOADERS: Volvo
L30G
L35G
L45G
L50G
L30H
L35H
L45H
L50H
Part NO. ZM4395120 for Volvo L25F
WHEEL LOADER VOLVO L25F
BASIC MACHINE
11390019, L25F, S/N 1755001 –
11390020, L25F with Z-linkage, S/N 1755006 –
CAB
11391354, Cab L20 – L25F
ENGINE
15211726 Volvo D3,6D CBE3, S/N 1755001-1755245
15216362 Volvo D3,6D CBE3, S/N 1755246-1756300
15223704 Volvo D3,1A CBE3, S/N 1756301-
FRONT AXLE
15200436, ZF – AP-R715, S/N 1755001-1755573
15219729 S/N 1755574-
REAR AXLE
15200437, ZF – AP-R715, S/N 1755001-1755573
15219730 S/N 1755574-
